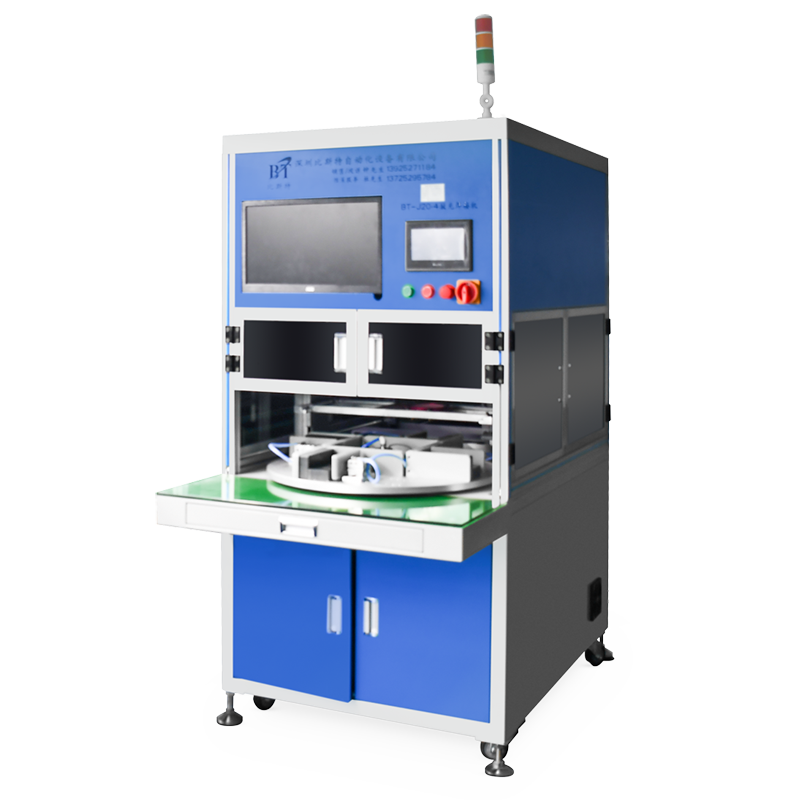

BT-J20-4 laser automatic welding machine
2025-11-20 15:27:46
Product features：
Automatic laser welding of polymer cell's tabs and PCB nickel pads
Cylindrical battery pack voltage collection nickel sheet and BMS PCB nickel sheet pad automatic laser welding
一、Main function
Automatic laser welding of polymer cell's tabs and PCB nickel pads
Cylindrical battery pack voltage collection nickel sheet and BMS PCB nickel sheet pad automatic laser welding
二、Product characteristics
Automatic welding, solder joints are even, good consistency, improve thequalification rate
Using 300W pulse laser welding and cutting machine
Machine comes with cooling device
Welding coordinate parameters are written by computer programming
The operating mechanism adopts a stepping motor to drive the rotating table for precise positioning
Automatic production quantity collection
三、Product parameters
Power | AC380V 50/60HZ 5KW | Maximum welding stroke | L100*W100MM | ||||
Air pressure | 0.4-0.8Mpa,Air source must be used when there is afilter device to ensure that the flow of water-free impurities. | ||||||
Suitable for welding nickel sheet thickness | 0.1MM-0.2MM | ||||||
Standard laser welding power | 300W pulse laser welding.quantity 1 | ||||||
Welding type | 1Automatic laser welding of polymer cells tabs and PCB nickel pads 2.Cylindnical battery pack voltage collection nickel sheet and BMS PCB nickel sheet pad automatic laser welding | ||||||
Chiller | Dong lu yang | ||||||
Fiber optic cable | Standard length 5m | ||||||
Industrial Computer | win 7 | ||||||
Laser rod | YAG Transistor | Equipment dimensions | L1550*W900^H1700MM | ||||
Droductivit | About0.5S/per point | Weight | 650KG | ||||
